Epoxy Resin Coating NTC Temperature Sensor for Automotive Air Conditioner

‌
‌
‌
‌
‌

Product Details

Description
Privacy Policy
Reviews

Product Description

Automotive air temperature sensor use high relibility and steability NTC thermistor as sensing element .

The small step tip enables fast response and our unique craft makes this sensor especially steable under frequest hot-cold circle

Negative temperature coefficient thermistor is a thermistor whose resistance value decreases with increasing temperature. The resistance change can be caused by the external environment temperature or the self-heating of the components caused by the current in the loop. The predictability of this resistance change with temperature is the basis of the thermistor application.

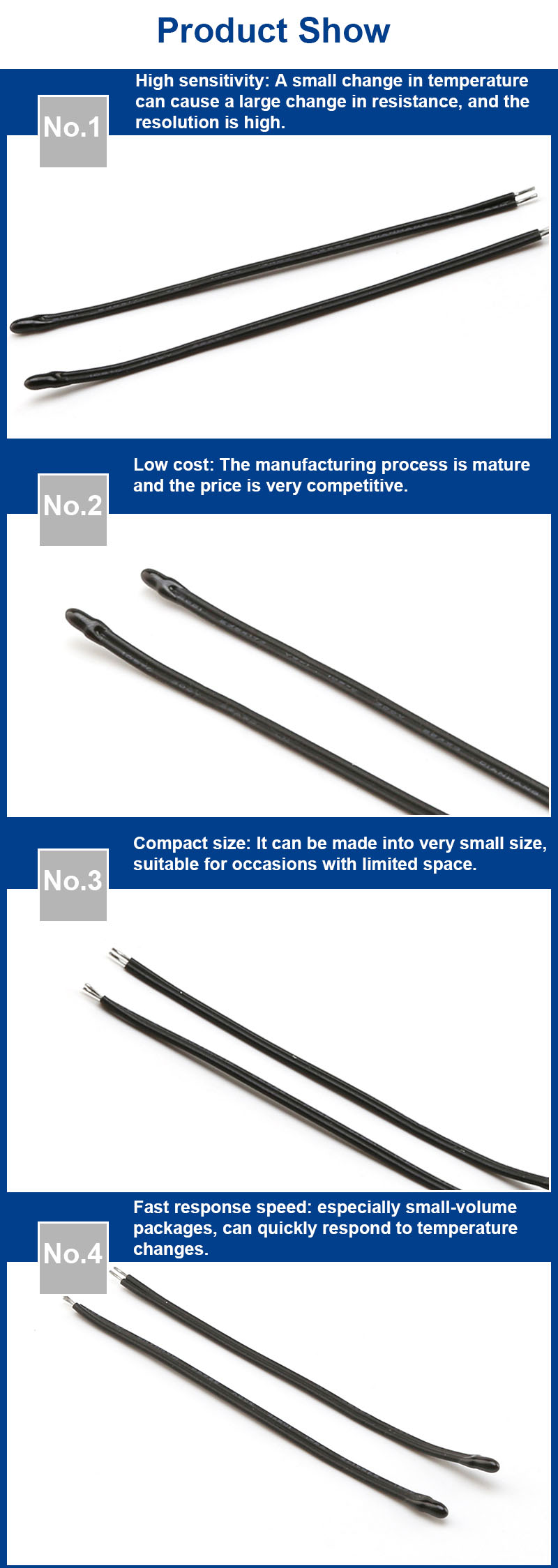

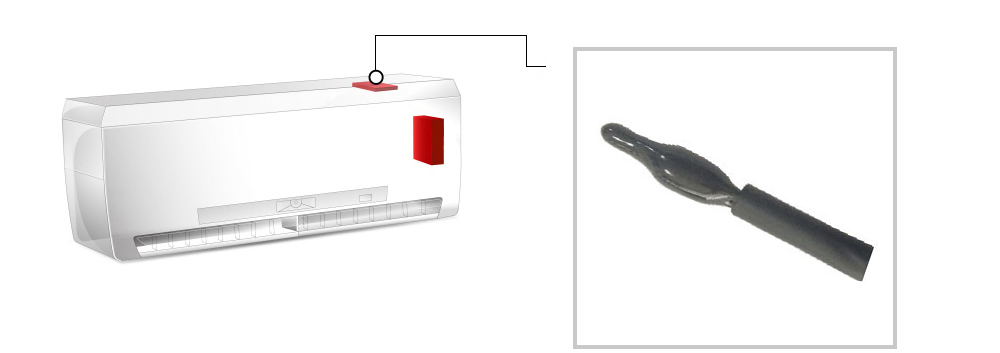

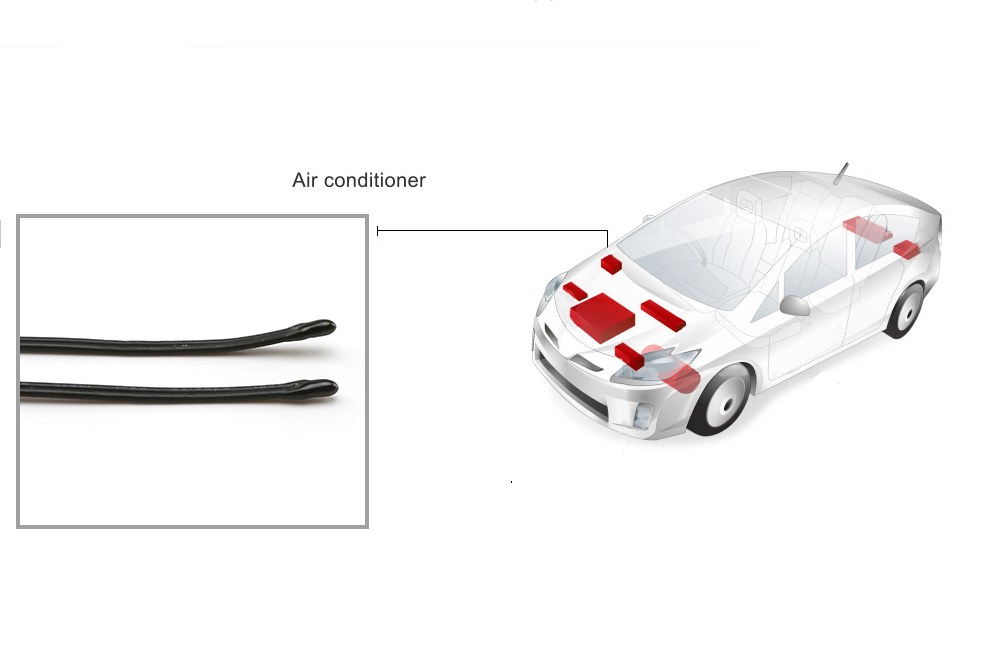

It is suitable for temperature measurement and control of household air conditioners, automobile air conditioners, refrigerators, freezers, water dispensers, water heaters, heaters, dishwashers, washing machines, disinfection cabinets, dryers, and thermostats.


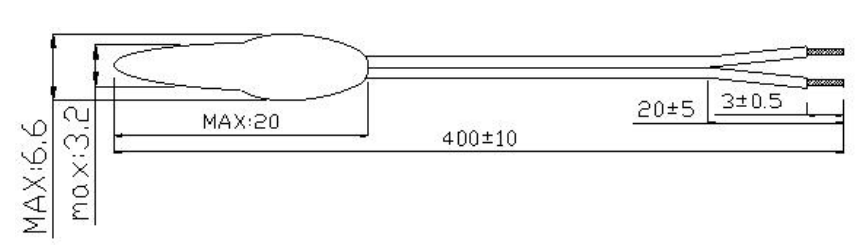

Specification

Epoxy Resin Coating NTC Temperature Sensor for Automotive Air Conditioner

NO Material Name Item/PN
2-1. Lead wire UL2651#Φ1.8 *2C 105℃ 300V Grey White
2-2. Thermistor R0=6.65KΩ±1.5% R25=2KΩ±3.5% B0/25=3941K±1% MF52
2-3. Epoxy Resin J105/J106B/J05X G108/GU01 Black

Specification R25℃ (KΩ) B25/50℃ (K) Disspation constant Thermal time constant Operating temp. range
CWF□-□280-301□ 0.3 2800

ln still air 2.1~15mW/℃

ln still air 25~65s

-40~+150℃

CWF□-□338/350-202□ 2 3380/3500
CWF□-□327/338-502□ 5 3270/3380
CWF□-□327/338-103□ 10 3270/3380
CWF□-□347/395-103□ 10 347/3950
CWF□-□395-203□ 20 3950
CWF□-□395/399-473□ 47 3950/3990
CWF□-□395/399-503□ 50 3950/3990
CWF□-□395/399-104□ 100 3950/3990
CWF□-□420/425-204□ 200 4200/4250
CWF□-□440-474□ 470 4400
CWF□-□445/453-145□ 1400 4450/4530

The sizes above are for reference only. Different encapsulation and electrical parameter can be custom made as requirement.

Performance

NO Item Sign Test Conditions Min. Normal value Max. Unit
4-1. Resistance at 25℃ R25

Ta=5±0.05℃

PT≦0.1mw

1.93 2 2.07 K
4-2. B Value B0/25 3874 3914 3953 k
4-3. Dissipation factor σ Ta=25±0.5℃ 1.5 / mw/℃
4-4. Time constant τ Ta=25±0.5℃ / / 3 sec
4-5. Insulation resistance / 500VDC 100 / / MΩ
4-6 High-voltage Insulation Test / 1500VAC 5 Sec
4-7 Operating temp.range / / -10 / +100 ℃

Features

⇒ Wide operating temperature range

⇒ High stability and reliability

⇒ Fast response

⇒ Air temperature measurement

⇒ Automotive Grade

Application

⇒ Auto Air-condintioner

⇒ Dryer

⇒ Air-conditioner

⇒ Industrial manufacture

⇒ Electronic appliance
