Product Description
TPE waterproof thermistor temperature sensors are innovative thermal measurement devices that utilize Thermoplastic Elastomer (TPE) encapsulation to provide exceptional waterproof protection and flexibility. These sensors combine the high sensitivity of NTC thermistors with the durable, flexible properties of TPE material, making them ideal for applications requiring reliable temperature monitoring in moist or wet environments while maintaining excellent mechanical performance.

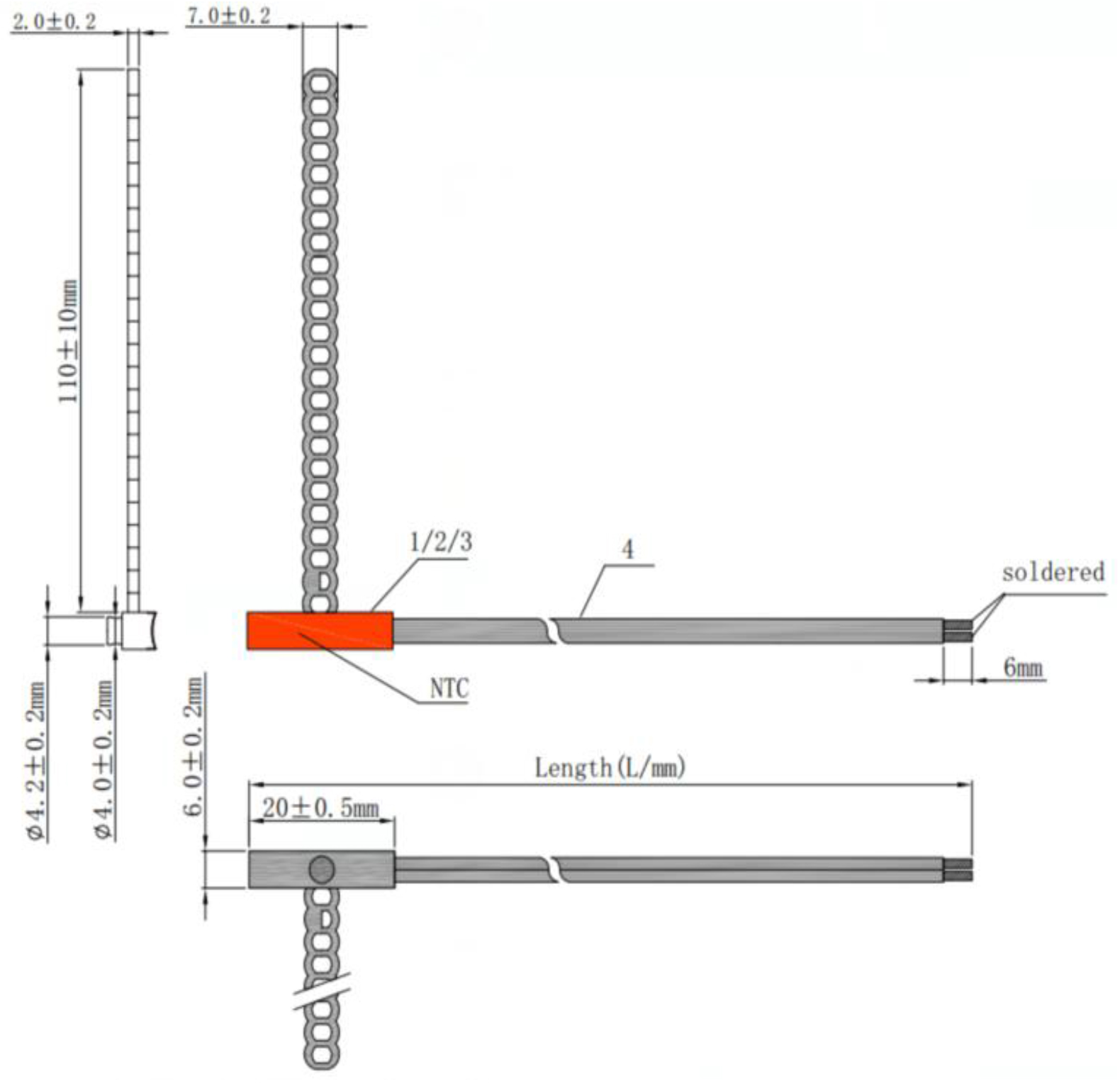

Specification
| NO. | Component | Material and Specifications | Q'TY | Unit | Comment |
| 1 | Element | R25:10K±1%, B25/85: 3977±1% | 1 | PCS | |
| 2 | Coating | (TPE) Thermoplastic Elastomer | g | Black | |
| 3 | Housing | 6X20mm Copper plate | 1 | PCS | |
| 4 | Lead Wire | AWG26*2C TPE Flat (B Type) | 2000 | mm | Black |
| 5 | Wire Ends | Tinned |
| Operating temp. range(℃) |
Time response (Sec.) |
Dissipation factor (Mw/℃) |
Withstanding Voltage (Sec.) |
Insulation Resistance (MΩ) |
| -40 ～ +110 | About 15 | About 2 | 1500VAC 2Sec. | 500VDC, ≧100 |

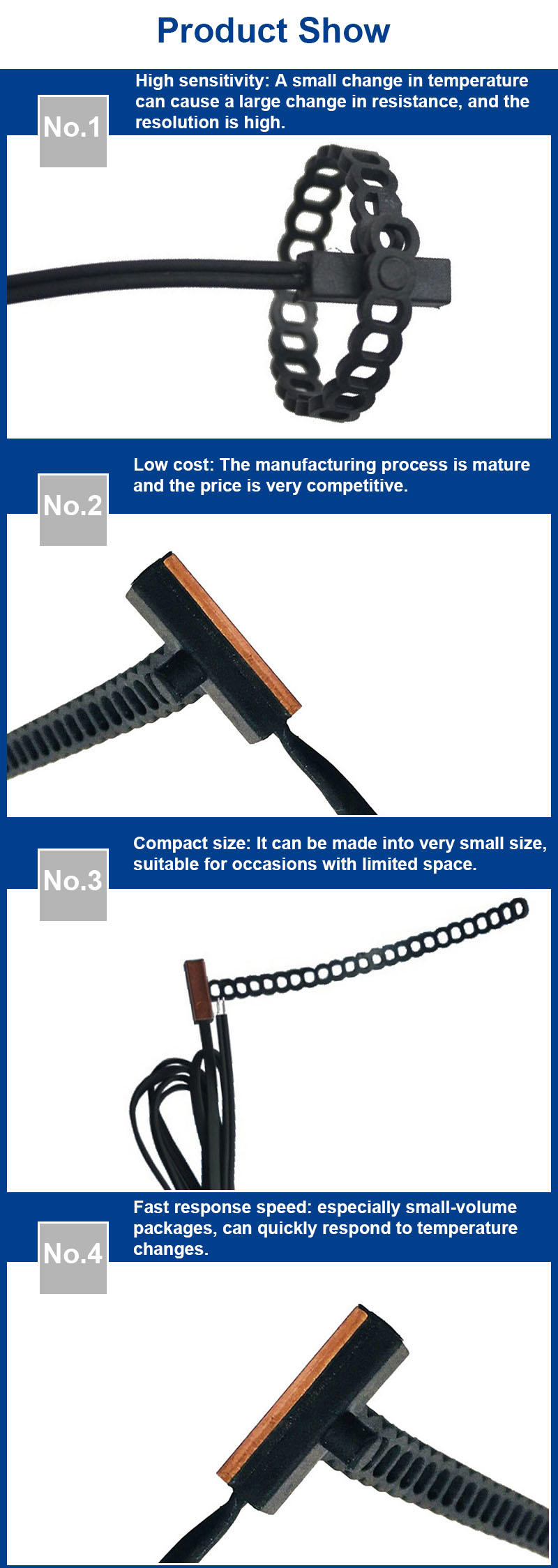

Features
IP68-rated waterproof protection
Excellent flexibility and bend resistance
High temperature measurement accuracy (±0.1°C)
Wide operating temperature range (-50°C to 150°C)
Resistance to chemicals, oils, and UV radiation
Soft-touch, skin-safe material properties
Customizable shapes and cable lengths
Easy installation and maintenance
Application
Water heaters and household appliances
Automotive liquid temperature monitoring
Medical and healthcare equipment
Outdoor electronic devices
Fitness and sports equipment
Industrial process control
Agricultural monitoring systems
Consumer electronics
These sensors provide reliable performance in challenging conditions while offering the flexibility needed for complex installation scenarios. The TPE material ensures long-term reliability in humid or wet environments, making these sensors particularly suitable for applications where both environmental protection and mechanical durability are critical requirements.
