Custom PTC solutions from prototype to mass production.

PTC constant temperature heating element

‌
‌
‌
‌
‌

Product Details

Description
Privacy Policy
Reviews

Specification

Product Name: PTC constant temperature heating element

Zero power resistance value: 1.5-2000Ω

Rated voltage: 7.2V-220V

Curie temperature: 160℃-180℃

Application: Suitable for constant temperature heating of electronic mosquito repellents, electronic milk bottles, medical electric heating appliances, hot melt glue guns and other similar electric heating appliances.

Model Rated voltage Zero resistance value Curie temperature aspect
MZ9-HTD-1 7.2 VDC
2.0Ω~4.0Ω
170°C Φ12×Φ5×0.8mm
MZ9-HTD-2 3.6 V DC 1.5Ω~4.0Ω 170°C Φ14×Φ5×0.8mm
MZ9-HSA-1 220 volts AC 1000Ω~2000Ω 160°C Φ20×Φ8×2.5mm
MZ9-HTA-1 220 volts AC 1000Ω~2000Ω 180°C φ18×φ6×2.5mm
MZ9-HTA-2 110 volts AC 200Ω~500Ω 180°C φ16×φ6×2.5mm

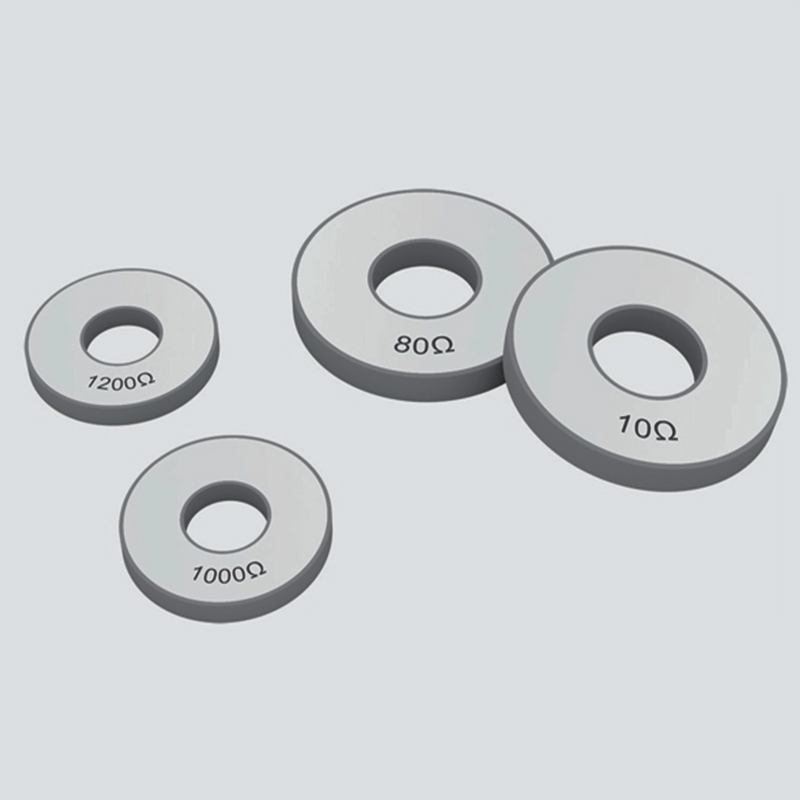

PTC constant temperature heating elements for electronic mosquito repellents, electronic baby bottles, medical electric heating appliances, and hot melt glue guns

PTC constant temperature heating element

PTC constant temperature heating element

People who viewed this also viewed

Ceramic PTC heating elements

PTC heating elements are electric heating elements made of positive temperature coefficient (PTC) ceramic material. Their core features include automatic temperature regulation and over-temperature protection: At low temperatures, their resistance is low, allowing them to rapidly heat up upon power application. When the temperature reaches a specific critical point (the Curie temperature), their resistance increases dramatically, automatically reducing power consumption to avoid overheating. This adaptive feature ensures high safety and energy savings, enabling stable temperature control without the need for additional temperature control devices.

They are widely used in home appliances (such as air conditioning auxiliary heating and heaters), automotive electronics (seat heating and battery preheating), medical equipment, and industrial applications. Their compact design, long lifespan, and lack of open flames make them key components in modern intelligent thermal management solutions.

Ceramic PTC heating elements

PTC heating elements are electric heating elements made of positive temperature coefficient (PTC) ceramic material. Their core features include automatic temperature regulation and over-temperature protection: At low temperatures, their resistance is low, allowing them to rapidly heat up upon power application. When the temperature reaches a specific critical point (the Curie temperature), their resistance increases dramatically, automatically reducing power consumption to avoid overheating. This adaptive feature ensures high safety and energy savings, enabling stable temperature control without the need for additional temperature control devices.

They are widely used in home appliances (such as air conditioning auxiliary heating and heaters), automotive electronics (seat heating and battery preheating), medical equipment, and industrial applications. Their compact design, long lifespan, and lack of open flames make them key components in modern intelligent thermal management solutions.

MCH Ceramic Heater

PTC heating elements are electric heating elements made of positive temperature coefficient (PTC) ceramic material. Their core features include automatic temperature regulation and over-temperature protection: At low temperatures, their resistance is low, allowing them to rapidly heat up upon power application. When the temperature reaches a specific critical point (the Curie temperature), their resistance increases dramatically, automatically reducing power consumption to avoid overheating. This adaptive feature ensures high safety and energy savings, enabling stable temperature control without the need for additional temperature control devices.

They are widely used in home appliances (such as air conditioning auxiliary heating and heaters), automotive electronics (seat heating and battery preheating), medical equipment, and industrial applications. Their compact design, long lifespan, and lack of open flames make them key components in modern intelligent thermal management solutions.

PTC constant temperature heating element

PTC heating elements are electric heating elements made of positive temperature coefficient (PTC) ceramic material. Their core features include automatic temperature regulation and over-temperature protection: At low temperatures, their resistance is low, allowing them to rapidly heat up upon power application. When the temperature reaches a specific critical point (the Curie temperature), their resistance increases dramatically, automatically reducing power consumption to avoid overheating. This adaptive feature ensures high safety and energy savings, enabling stable temperature control without the need for additional temperature control devices.

They are widely used in home appliances (such as air conditioning auxiliary heating and heaters), automotive electronics (seat heating and battery preheating), medical equipment, and industrial applications. Their compact design, long lifespan, and lack of open flames make them key components in modern intelligent thermal management solutions.

What to include in your inquiry

Clear requirements help our engineering team answer faster and recommend the right component the first time.

  • Product type and application, such as an NTC sensor for a battery pack or a PTC heater for an air-handling unit.
  • Key electrical values: resistance at 25 °C, B-value or switching temperature, rated voltage and power.
  • Operating temperature range, response time and any insulation, sealing or waterproof requirements.
  • Mechanical details including probe or housing size, lead length, cable, terminal and connector type.
  • Expected annual quantity, sample needs and target delivery schedule.
  • Drawings, photos or a current part number if you are replacing an existing component.

What happens after you contact us

  1. An engineer reviews your requirements and asks about any missing parameters.
  2. We recommend a standard model or propose a custom design together with a quotation.
  3. Samples are prepared for your testing and approval before volume production starts.
