Product Description
MF55 thin-film thermistor temperature sensors represent an advanced thermal sensing technology that utilizes precision thin-film deposition techniques to create highly stable temperature-sensitive elements. These sensors feature a ceramic substrate coated with a thin-film thermistor material, offering superior performance characteristics compared to traditional bead-type thermistors, making them ideal for precision temperature measurement and control applications.
Specification

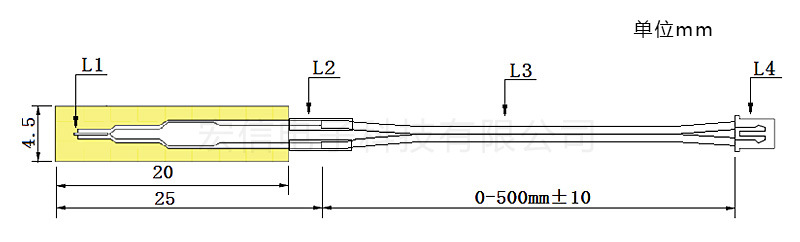

| No. | Component | Specification | QTY |
| 1 | NTC Thermistor | MF55- R25= 100K B25/50=3950 1% | 1PC |
| 2 | Sleeve | 1.0 Heat Shrinkable Tube 15L | 1PC |
| 3 | Cable | 26#2651 Black Parallel 105°C 300V | 1PC |
| 4 | Connector | XH2.54-2Y | 1PC |
Features
Exceptional temperature measurement accuracy (±0.1°C typical)
Outstanding long-term stability and reliability
Miniaturized package design for space-constrained applications
Rapid thermal response time (<1 second in air)
Wide operating temperature range (-80°C to +300°C)
Excellent resistance to thermal shock and vibration
Low power consumption and high sensitivity
Custom resistance values and temperature curves available
Application
Medical equipment and diagnostic instruments
High-precision industrial temperature control systems
Automotive engine management and climate control
Aerospace and defense temperature monitoring
Consumer electronics thermal protection
Laboratory and scientific instrumentation
Energy management systems
Smart home automation devices
These sensors combine the accuracy of platinum RTDs with the sensitivity of thermistors, providing an optimal solution for applications requiring both precision and fast response. Their robust construction and stable performance make them suitable for demanding environments where reliable temperature data is critical for system operation and safety.
