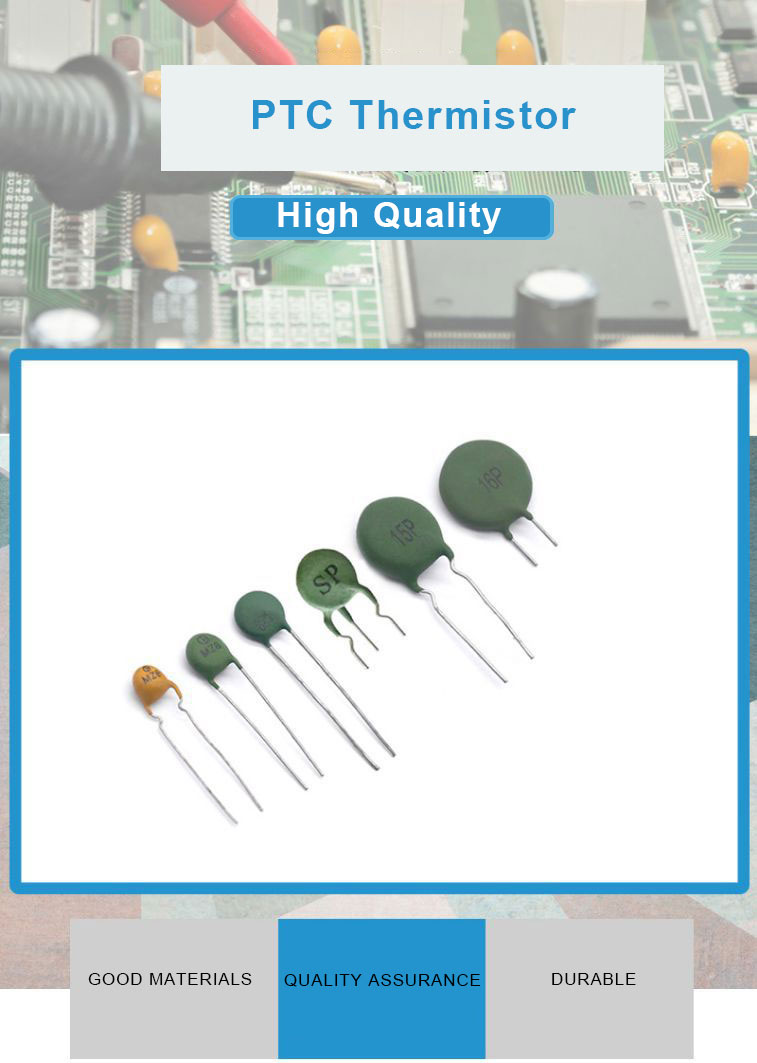

Product Description

The MZ 6 series PTC thermistors are suitable for use as preheating starting elements in various fluorescent lamps, electronic ballasts, and energy-saving lamps. Electrode preheating significantly extends lamp life and cycle life. Tianrui has ten years of experience in the research, development, and manufacturing of PTC thermistors. Leveraging this extensive experience, we offer high-quality, reasonably priced PTC thermistors for time-delay and switching applications. Many lighting manufacturers, including some renowned international companies, are among our clients.

Specification

Product Name: MZ 6 PTC Thermistor

R25 : 800-1200Ω

Curie temperature : 75℃

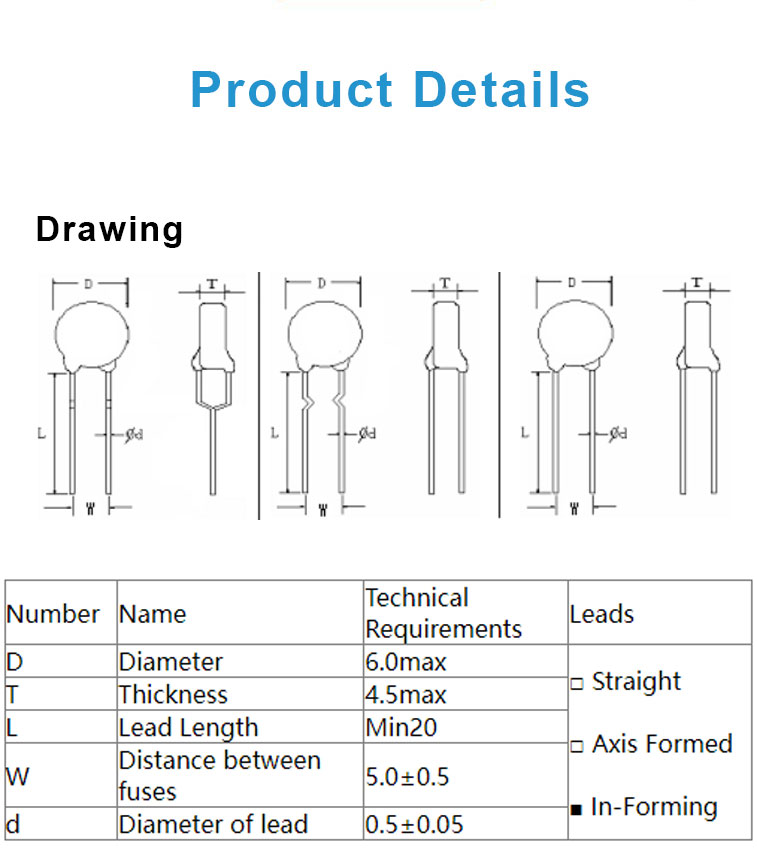

Diameter : 6 mm

Withstand current : ≥ 500mA

Coating : PF resin

Withstand voltage : ≥800V

Lead length : minimum 20mm

Color : yellow or green

Features

• Small size
• High voltage resistance (800 ~ 1000VAC and above)
• Long life (over 10,000 power on/off cycles)
• Low power consumption

• Wide range of tripping and non-tripping currents: from 11 mA to 800 mA
• The ratio between the tripping current and the non-tripping current is small (It/Int = 1.5 at 25 °C)
• High maximum inrush current (up to 5.5 A)
• Leaded parts can withstand mechanical stress and vibration
