Descriptions of Wall-mounted Boiler Fan

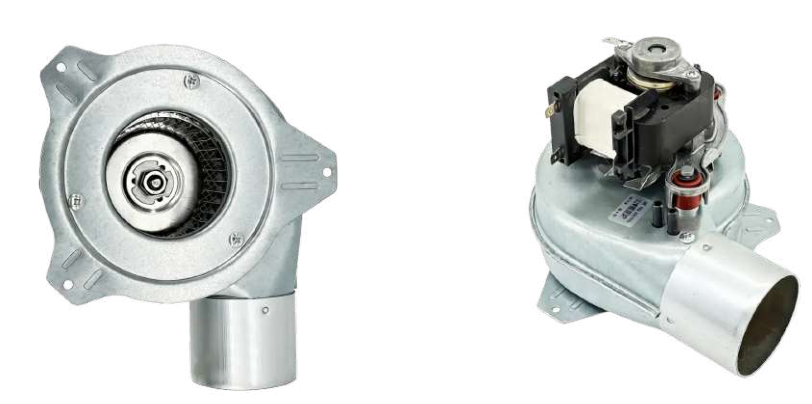

This wall‑mounted boiler blower is a high‑performance centrifugal fan designed for heating boiler systems. Rated at 32W, 220V 50Hz, it adopts stainless steel‑related metal housing structure. Compact and robust construction delivers stable air supply for combustion supporting and exhaust. Two viewing angles show the front air inlet and the side with complete motor assembly, presenting the full mechanical structure of the blower unit.

Specification of Wall-mounted Boiler Fan

Product Name Wall-mounted Boiler Fan
Rated voltage 220V
Input Power 33W
Frequency 50
Current 0.25A
Wind Speed 11m/s
Speed 2313r/min
Pa 170
Noise(dBA) 48

Product Show of Wall-mounted Boiler Fan

Customized Wall Hung Combustion Fan Centrifugal Fan Condensing Boiler Fan 32W 220VCustomized Wall Hung Combustion Fan Centrifugal Fan Condensing Boiler Fan 32W 220V

Customized Wall Hung Combustion Fan Centrifugal Fan Condensing Boiler Fan 32W 220V

Customized Wall Hung Combustion Fan Centrifugal Fan Condensing Boiler Fan 32W 220VCustomized Wall Hung Combustion Fan Centrifugal Fan Condensing Boiler Fan 32W 220V

Customized Wall Hung Combustion Fan Centrifugal Fan Condensing Boiler Fan 32W 220V

Customized Wall Hung Combustion Fan Centrifugal Fan Condensing Boiler Fan 32W 220V

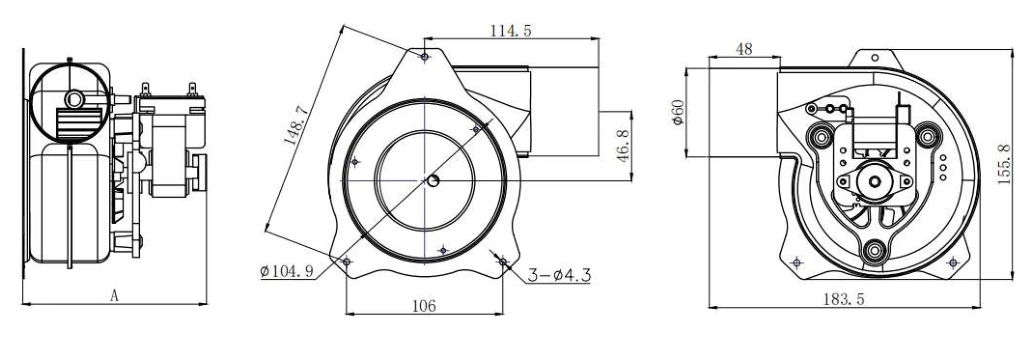

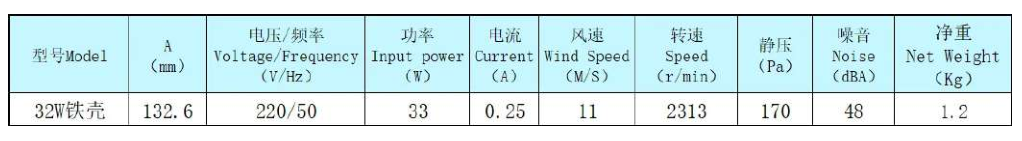

Model

A

(mm)

Voltage/

Frequency

(V/Hz)

Input Power

(w)

Current

(A)

Wind Speed

(M/S)

Speed

(r/min)

Static pressure

(Pa)

Noise

(dBA)

Net Weight

(kg)

32W Model 132.6 220/50 33 0.25 11 2313 170 48 1.2

Features of Wall-mounted Boiler Fan

Rated specification: 32W, 220V‑50Hz, stable power output for boiler ventilation requirement

Metal galvanized housing with corrosion resistance, long service life for high‑temperature working environment

Wall‑mount flange mounting holes, easy and flexible installation & fixation

Centrifugal blower structure, efficient air delivery for combustion‑aid and smoke exhaust

Complete assembled motor module, reliable mechanical structure, low operational vibration

Compact overall dimension, well‑adapted to limited internal space of heating equipment

Application of Wall-mounted Boiler Fan

Mainly used for wall‑hung heating boilers, gas‑fired heating equipment, heating furnaces and related thermal appliances. Responsible for combustion air supply and flue gas exhaust, widely applicable in household and commercial heating system.
